MapLibre Tile Specification

Basics¶

An MLT (MapLibre Tile) contains information about a specific geographic region, known as a tile. Each tile is a collection of FeatureTables, which are equivalent to Layers in the MVT specification.

A FeatureTable contains thematically grouped vector data, known as Features. A FeatureTable can contain up to 2^31 - 1 (2,147,483,647) features; this limit is chosen so the feature count fits in signed 32-bit integer fields used by decoders.

Features within a single FeatureTable share a common set of attribute columns (properties) and typically share the same geometry type (though this is not strictly required).

Each FeatureTable is preceded by a FeatureTableMetadata that describes FeatureTable's structure.

The visual appearance of a tile is usually defined by a MapLibre Style, which specifies how features are rendered.

Each feature must have

• a geometry column (type based on the OGC's Simple Feature Access Model (SFA), excluding support for GeometryCollection types)
• an optional id column
• optional property columns

While geometries are not restricted to a single type, using one type per table is recommended for efficiency. As in MVT, geometry coordinates are encoded as integers within vector tile grid coordinates.

MVT Compatibility Notes¶

MLTv1 is inspired by MVT and can represent the same common vector tile content, but it is not a byte-for-byte or schema-free replacement. The main differences come from MVT's per-feature tag/value model versus MLT's per-layer column model:

• Property types are fixed per FeatureTable. In MVT, the same key can technically reference values of different data types on different features in a layer. In MLT, one property name corresponds to one column, and that column has one declared type for the whole layer (FeatureTable). MVT data with mixed types must therefore be normalized before or during conversion, for example by lossless numeric widening, coercing values to strings, dropping mismatched values, or rejecting the tile.
• Missing properties become typed nulls. MVT normally represents a missing property by omitting the key/value tag from that feature; the MVT value union has no dedicated null type. MLT represents the union of layer properties as columns, so a feature that lacks a property stores a null in that column and the column is marked nullable. When converting MLT back to MVT, null property values should be omitted from the feature tags.
• A feature has at most one value per property column. MVT tag streams can encode the same key more than once for a single feature, even though most MVT APIs expose properties as a map and collapse such duplicates. MLT has one cell per feature per column, so duplicate keys on one feature must be rejected, collapsed deterministically, or renamed before encoding.
• Feature order is not necessarily a stable round-trip property. MVT stores features in wire order. MLT encoders may preserve order, but they may also sort features by id or spatial locality to improve compression when that optimization is enabled. Applications that rely on source feature order should disable feature sorting or carry an explicit ordering property.
• Layer names must be non-empty. The MVT protobuf schema marks the layer name field as required, but some Mapbox-authored tooling validates that it is present as well as non-empty. The written MVT specification does not explicitly say that the required name cannot be an empty string. MLT treats that omission as an oversight: an empty layer name is invalid and must be rejected.

Tile Layout¶

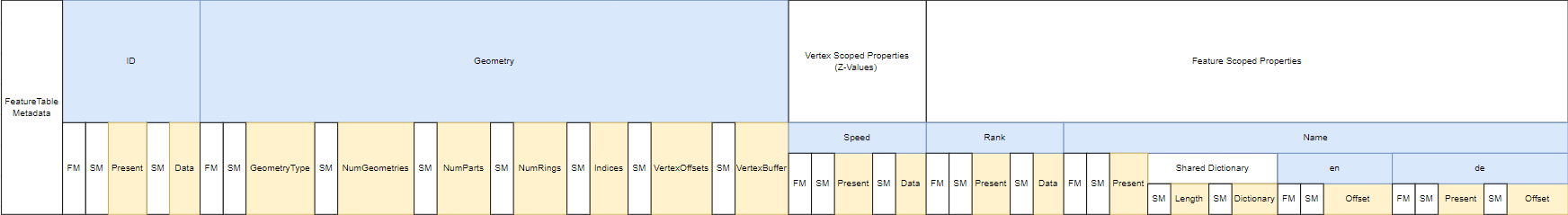

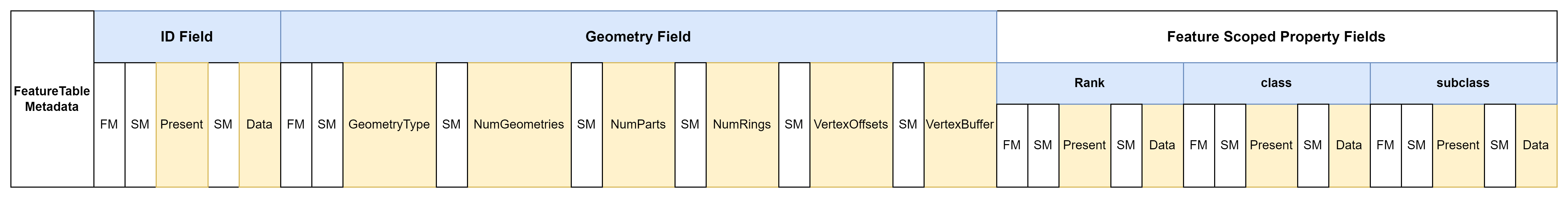

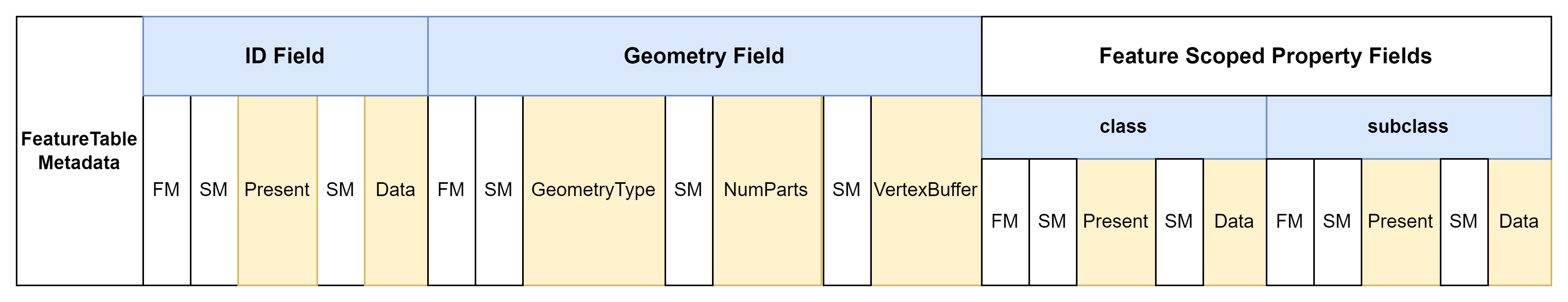

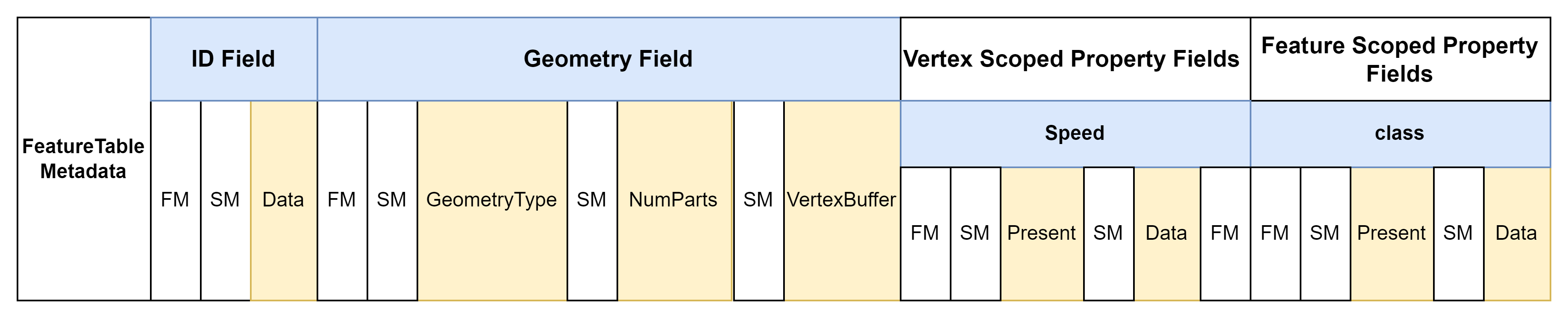

A FeatureTable in the MLT specification uses a tabular, column-oriented layout. It employs various lightweight compression schemes to encode column values efficiently.

A FeatureTable consists of a mandatory geometry column, an optional id column, and optional property columns. The absence of a single header at the beginning of the tile allows FeatureTables to be constructed independently, and even concatenated on the fly.

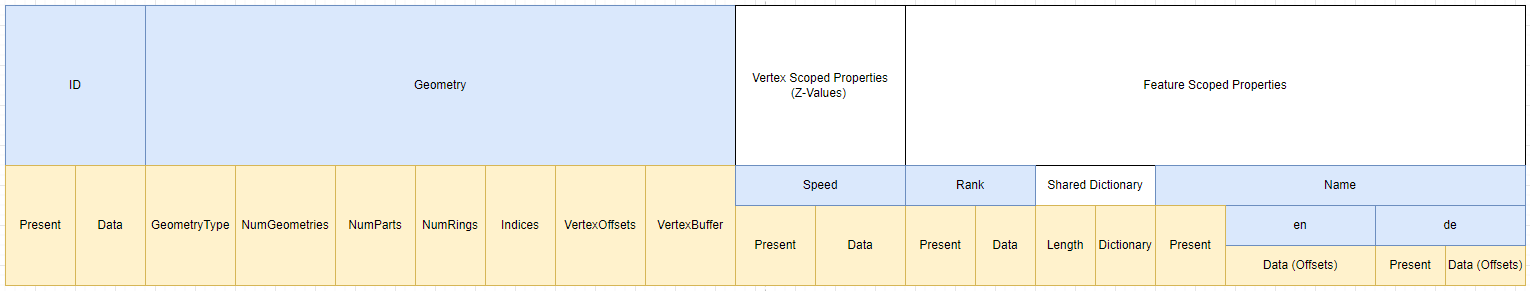

A logical column is separated into several physical streams (sub-columns), inspired by the ORC file format. These streams are stored contiguously. A stream is a sequence of values of a known length in a continuous memory chunk, all sharing the same type. Streams include additional metadata, such as their size and encoding type.

For example, a nullable string property column might have:

• A present stream (a bit flag indicating the presence of a value).
• A length stream (describing the number of characters for each string).
• A data stream (containing the actual UTF-8 encoded string values).

MLT defines the following stream types:

• Present: Enables efficient encoding of sparse columns by indicating value presence via a bit flag. This stream can be omitted if the column is not nullable (as declared in the FieldMetadata).
• Data: Stores the actual column data (e.g., boolean, int, float, or string values for feature properties, dictionary-encoded values, or geometry coordinates). For fixed-size data types (boolean, int, float), this is the only required stream besides the optional present stream.
• Length: Specifies the number of elements for variable-sized data types like strings or lists.
• Offset: Stores offsets into a data stream when using dictionary encoding (e.g., for strings or vertices).

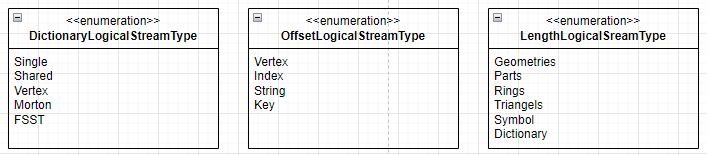

These physical streams are further categorized into logical streams that define how to interpret the data:

classDiagram
    class DictionaryLogicalStreamType {
        <<enumeration>>
        Single
        Shared
        Vertex
        Morton
        FSST
    }

    class OffsetLogicalStreamType {
        <<enumeration>>
        Vertex
        Index
        String
        Key
    }

    class LengthLogicalStreamType {
        <<enumeration>>
        Geometries
        Parts
        Rings
        Triangles
        Symbol
        Dictionary
    }

Metadata¶

Tileset Metadata ¶

Global metadata for the entire tileset is stored separately in a JSON file.

This tileset metadata provides information for the full tileset and is the equivalent of the TileJSON spec commonly used with MVT and other tile types. By defining this information once per tileset, we avoid redundant metadata in each tile, saving significant space, especially for small tiles.

Tile Metadata¶

There is no global tile header. Each FeatureTable has its own metadata.

FeatureTable Metadata¶

The FeatureTableMetadata is described in detail below.

Within a FeatureTable, additional metadata describes the structure of each part:

• FieldMetadata: Contains information about a field (column), including the number of streams it comprises and its vector type for efficient decoding into the in-memory format. Every field section is preceded by a FieldMetadata section.
• StreamMetadata: Contains information about a stream, such as the encoding scheme used and the number of values. Every stream section is preceded by a StreamMetadata section.

Since every Field has a FieldMetadata section, even for fields absent in a specific tile, no id is needed. A field's absence is indicated by a zero value for its number of streams. All integers in metadata sections are Varint-encoded (for u32) or bit-packed (for u8).

---
config:
  class:
    hideEmptyMembersBox: true
title: FeatureTableSchema
---
classDiagram
direction TB
    class Tile {
      +LayerGroup[] groups
    }

    class LayerGroup {
      +VarInt metadataSize
      +TileMetadata metadata
      +u8[] tileData
    }

    class TileMetadata {
      +FeatureTable[] featureTables
    }

    class FeatureTable {
      +String name
      +VarInt extent
      +VarInt columnCount
      +Column[] columns
    }

    class Column {
      +ColumnOptions options %% VarInt
      +String name
      +ScalarColumn scalarType %% oneof i.e., scalarType XOR complexType
      +ComplexColumn complexType
    }

    Tile --> LayerGroup : groups
    LayerGroup --> TileMetadata : metadata
    TileMetadata --> FeatureTable : featureTables
    FeatureTable --> Column : columns

The required extent field defines the coordinate space size for the tile's geometry. Geometry coordinates in MapLibre Tiles are encoded as signed integers in vector-tile grid coordinates (typically near the 0..=extent range, but not restricted to it). Values MAY be negative or exceed extent for geometry that crosses tile boundaries. Encoders MAY default to 4096 when a user does not specify the extent. Decoders MUST require it to diferente extent and columnCount.

Strings are encoded as UTF-8 sequences of characters with a length header:

---
config:
  class:
    hideEmptyMembersBox: true
title: StringsSchema
---
classDiagram
direction TB
    class String {
      +VarInt length
      +u8 bytes[length] %% encoding is always UTF-8
    }

Columns can be thought of as a union of scalar and complex columns and can have these options:

---
config:
  class:
    hideEmptyMembersBox: true
title: ColumnsSchema
---
classDiagram
direction TB
    class FieldOptions {
      NULLABLE = 1, %% Property is nullable
      COMPLEX_TYPE = 2, %% A complexType follows if set, else a scalarType [EXPERIMENTAL]
      LOGICAL_TYPE = 4, %% A logical type follows if set, else a physical type [EXPERIMENTAL]
      CHILD_TYPES = 8, %% 1: Child types are present [EXPERIMENTAL]
    }

    class ColumnOptions {
      VERTEX_SCOPE = 16, %% Property is vertex-scope if set, else feature-scope
    }

    <<enumeration>> FieldOptions
    <<enumeration>> ColumnOptions

    FieldOptions <|-- ColumnOptions

Scalar columns are laid out as follows:

---
config:
  class:
    hideEmptyMembersBox: true
title: ScalarColumnsSchema
---
classDiagram
direction TB
    class Column {
    }

    class ScalarColumn {
      +ScalarColumnOptions options %% VarInt
      +ScalarType physicalType %% oneof i.e., physicalType XOR logicalType
      +LogicalScalarType logicalType
    }

    class ScalarType {
      BOOLEAN = 0
      INT_8 = 1
      UINT_8 = 2
      INT_32 = 3
      UINT_32 = 4
      INT_64 = 5
      UINT_64 = 6
      FLOAT = 7
      DOUBLE = 8
      STRING = 9
      INT_128 = 10
      UINT_128 = 11
    }

    class LogicalScalarType {
      TIMESTAMP = 0
      DATE = 1
      JSON = 2
    }

    <<enumeration>> ScalarType
    <<enumeration>> LogicalScalarType

    note for LogicalScalarType "[EXPERIMENTAL]"

    Column --> ScalarColumn : scalarType
    ScalarColumn --> ScalarType : physicalType
    ScalarColumn --> LogicalScalarType : logicalType

And ComplexColumns like this:

---
title: ComplexColumnsSchema
config:
  class:
    hideEmptyMembersBox: true
---
classDiagram
direction TB
    class ComplexColumn {
      +ComplexType physicalType %% oneof i.e., physicalType XOR logicalType
      +LogicalComplexType logicalType
      +VarInt childCount %% Present only if CHILD_TYPES is set in columnOptions
      +Field[] children
    }

    class Field {
      +FieldOptions options %% VarInt
      +String name
      +ScalarField scalarField %% oneof i.e., scalarField XOR complexField
      +ComplexField complexField
    }

    class ScalarField {
      +ScalarType physicalType %% oneof i.e., physicalType XOR logicalType
      +LogicalScalarType logicalType
    }

    class ComplexField {
      +ComplexType physicalType %% oneof i.e., physicalType XOR logicalType
      +LogicalComplexType logicalType
      +VarInt childCount %% Present only if CHILD_TYPES is set in columnOptions
      +Field[] children
    }

    class ComplexType {
      VEC_2 = 0
      VEC_3 = 1
      GEOMETRY = 2
      GEOMETRY_Z = 3
      LIST = 4
      MAP = 5
      STRUCT = 6
    }

    class LogicalComplexType {
      BINARY = 0
      RANGE_MAP = 1
    }

    class Column {
    }

    <<enumeration>> ComplexType
    <<enumeration>> LogicalComplexType

    note for ComplexColumn "[EXPERIMENTAL]"
    note for ComplexField "[EXPERIMENTAL]"
    note for ComplexType "[EXPERIMENTAL]"
    note for LogicalComplexType "[EXPERIMENTAL]"
    note for Field "[EXPERIMENTAL]"
    note for ScalarField "[EXPERIMENTAL]"

    Column --> ComplexColumn : complexType
    ComplexColumn --> Field : children
    ComplexField --> Field : children
    Field --> ComplexField : complexField
    Field --> ScalarField : scalarField

Type System¶

The MLT type system distinguishes between physical and logical types. Physical types define the data layout in storage, while logical types add semantic meaning. This separation simplifies encoder and decoder implementation and allows encoding schemes to be reused.

Physical Types¶

Physical types define the data layout in storage. Both scalar and complex types can be categorized as fixed-size or variable-size binaries. Variable-size binaries require an additional length stream to specify the size of each element. Fixed-size binaries have a consistent bit (boolean) or byte width and thus require no length stream.

Scalar Types

Each scalar type uses a specific encoding scheme for its data stream.

Complex Types

Complex types are composed of scalar types.

Logical Types ¶

Logical types add semantics on top of physical types, enabling code reuse and simplifying encoder/decoder implementation.

Nested Fields Encoding ¶

This property type is analogous to JSON in that it contains key-value maps and lists which can be nested. Property keys are always strings.

The encoding consists of: - A length stream - Dictionary streams - A presence stream - A data stream

The length stream indicates how many data values are written for each feature. This is the only stream which is always written.

A dictionary stream is emitted for each unique data type present, containing all the values of that type. Values are referenced by their index within the combined set of these dictionaries.

A presence stream is emitted if the property is null for any feature. This distinguishes between empty ({}) and a null value when the length is zero.

The data stream encodes the index of values within the dictionary set along with control values describing the structure of the data. Maps and lists are encoded with a control value and the number of values to follow which are within that collection.

Sharing the dictionaries by grouping columns is not yet supported.

RangeMap ¶

RangeMaps efficiently encode linear referencing information, as used in Overture Maps. RangeSets store range values and data values in two separate streams. The min and max values for the ranges are stored as interleaved double values in a separate range stream.

Encoding Schemes¶

MLT uses various lightweight compression schemes for space-efficient storage and fast decoding. Encodings can be recursively cascaded (hybrid encodings) to a certain degree. For example, integer columns resulting from dictionary encoding can be further compressed using integer encoding schemes.

The following encoding pool was selected based on analysis of compression ratio and decoding speed on test datasets like OpenMapTiles and Bing Maps tilesets.

SIMD-FastPFOR is generally preferred over Varint encoding due to its smaller output and faster decoding speed. Varint encoding is included mainly for compatibility and simplicity, and it can be more efficient when combined with heavyweight compression like GZip.

A brute-force search for the best encoding scheme is too costly. Instead, we recommend the selection strategy from the BTRBlocks paper:

• Calculate data metrics to exclude unsuitable encodings early (e.g., exclude RLE if the average run length is less than 2).
• Use a sampling-based algorithm: randomly select parts of the data totaling ~1% of the full dataset and apply the candidate encodings from step 1. Choose the scheme that produces the smallest output.

FeatureTable Layout¶

ID Column¶

An id column is not mandatory. If included, it should be a u64 or narrower integer type (u32 if possible) for MVT compatibility. A narrower type enables the use of efficient encodings like FastPfor128.

Geometry Column¶

The geometry column uses a Structure of Arrays (SoA) layout (data-oriented design). The x, y coordinates are stored interleaved in a VertexBuffer for efficient CPU processing and direct copying to GPU buffers.

Optional z could be interleaved together with x,y, or if it is not needed for rendering, it can be stored separately as an M-value (see vertex-scoped properties).

The geometry information is separated into different streams, partly inspired by the geoarrow specification. This separation enables better compression optimization and faster processing. Pre-tessellated polygon meshes can also be stored directly to avoid runtime triangulation.

A geometry column can consist of the following streams:

Depending on the geometry type, the following streams are used in addition to GeometryType: - Point: VertexBuffer - LineString: NumParts, VertexBuffer - Polygon: NumParts (Polygon), NumRings (LinearRing), VertexBuffer - MultiPoint: NumGeometries, VertexBuffer - MultiLineString: NumGeometries, NumParts (LineString), VertexBuffer - MultiPolygon: NumGeometries, NumParts (Polygon), NumRings (LinearRing), VertexBuffer

When LineString and Polygon types are mixed in the same column, LineString vertex counts are stored in the NumRings stream (see Length Stream Encoding Rules below).

An additional VertexOffsets stream is present when using Dictionary or Morton-Dictionary encoding. If geometries (mainly polygons) are pre-tessellated for direct GPU use, NumTriangles and IndexBuffer streams must be provided.

The remainder of this section describes the binary format and decoding rules in detail. The format is designed for efficient storage and GPU-friendly random access patterns.

Geometry Types¶

Six geometry types are supported, encoded as unsigned integers:

Binary Structure¶

A geometry column is stored as a sequence of streams, prefixed by a stream count:

graph LR
    subgraph "Stream Count"
        SC[varint]
    end

    subgraph "Meta Stream"
        MS[geometry types]
    end

    subgraph "Topology Streams"
        TS[lengths/offsets]
    end

    subgraph "Vertex Stream"
        VS[coordinates]
    end

    SC --> MS --> TS --> VS

Each stream contains:

1. Stream metadata - encoding parameters (physical type, logical type, codec, value count, byte length)
2. Encoded data - the actual values

Stream Types¶

The streams listed above map to the following physical and logical stream types:

Topology Encoding¶

MLT uses a length-based encoding for geometry topology rather than explicit drawing commands. This enables efficient random access to individual features.

Conceptual Hierarchy¶

graph TD
    subgraph "Feature Table"
        GT["Geometry Types Stream<br/>[Point, Polygon, MultiPolygon, ...]"]
    end

    subgraph "Level 1: Geometries"
        GL["Geometries Length Stream<br/>sub-geometry counts<br/>for Multi* types"]
    end

    subgraph "Level 2: Parts"
        PL["Parts Length Stream<br/>ring counts per polygon"]
    end

    subgraph "Level 3: Rings"
        RL["Rings Length Stream<br/>vertex counts per ring"]
    end

    subgraph "Vertex Data"
        VB["Vertex Buffer<br/>[x₀,y₀, x₁,y₁, ...]"]
    end

    GT --> GL --> PL --> RL --> VB

Which Streams Are Present¶

The streams included depend on the geometry types in the column:

*LineString and MultiLineString parts are stored in the Rings stream when Polygons are also present in the same column.

Length Stream Encoding Rules¶

Length values are stored only for geometry types that need them. The key insight is that simple types have an implicit count of 1, while Multi* types store their sub-geometry counts explicitly.

The encoding uses a type threshold to determine which geometries need explicit lengths:

Rule: If a geometry type's value is greater than the threshold type's value (see Geometry Types table), store its length explicitly. Otherwise, the length is implicitly 1.

Example: A column with [Point, MultiPolygon, Polygon] geometry types:

Encoded geometries lengths: [3]     // Only MultiPolygon needs explicit count
                                    // (MultiPolygon=5 > Polygon=2)

Decoding to offsets:
  Point:        implicit 1  → offset 0→1   (Point=0, not greater than Polygon=2)
  MultiPolygon: explicit 3  → offset 1→4   (MultiPolygon=5 > Polygon=2, read from stream)
  Polygon:      implicit 1  → offset 4→5   (Polygon=2, not greater than Polygon=2)

Result: geometry_offsets = [0, 1, 4, 5]

Vertex Encoding¶

Componentwise Delta Encoding¶

Vertices are stored as interleaved (x, y) coordinate pairs using componentwise delta encoding:

graph LR
    subgraph "Original Coordinates"
        C["(100,200), (105,210), (102,215)"]
    end

    subgraph "Delta per Component"
        D["ΔX: 100, 5, -3<br/>ΔY: 200, 10, 5"]
    end

    subgraph "Zigzag Encoded"
        Z["X: 200, 10, 5<br/>Y: 400, 20, 10"]
    end

    subgraph "Interleaved Output"
        O["200, 400, 10, 20, 5, 10"]
    end

    C --> D --> Z --> O

Encoding steps: 1. Track previous X and previous Y separately (both start at 0) 2. For each vertex, compute delta_x = x - prev_x and delta_y = y - prev_y 3. Apply zigzag encoding: zigzag(n) = (n << 1) ^ (n >> 31) (maps negatives to positives) 4. Output as varint: [zigzag(Δx₀), zigzag(Δy₀), zigzag(Δx₁), zigzag(Δy₁), ...]

Decoding steps: 1. Read varints in pairs 2. Apply zigzag decoding: n = (zigzag >> 1) ^ -(zigzag & 1) 3. Accumulate: x = prev_x + delta_x, y = prev_y + delta_y

Dictionary Encoding (Optional)¶

When vertices repeat frequently, a dictionary encoding may be used:

graph TD
    subgraph "With Dictionary"
        VO["Vertex Offsets<br/>[0, 1, 2, 1, 0, 2]"]
        VD["Vertex Dictionary<br/>[(0,0), (10,10), (20,20)]"]
    end

    subgraph "Resolved Vertices"
        RV["(0,0), (10,10), (20,20), (10,10), (0,0), (20,20)"]
    end

    VO --> RV
    VD --> RV

The vertex dictionary is sorted by Hilbert curve index for spatial locality. The OFFSET/VERTEX stream contains indices into this dictionary.

Morton Encoding (Optional)¶

For spatial optimization, vertices can be Morton-encoded (Z-order curve):

Coordinate (5, 3):
  X bits: 1 0 1
  Y bits: 0 1 1
  Interleaved: 01 10 11 = 011011₂ = 27

Stored as: Morton code + metadata (numBits, coordinateShift)

Morton encoding enables efficient spatial clustering and range queries.

Integer Stream Encoding¶

Topology streams (lengths, offsets) use adaptive encoding selected for minimal size. All integer encodings use variable-length quantity (varint) as the base encoding:

RLE Format¶

Run-length encoding stores runs followed by values:

Input:  [5, 5, 5, 3, 3, 3, 3]
Runs:   [3, 4]        // 3 fives, 4 threes
Values: [5, 3]
Output: [3, 4, 5, 3]  // runs concatenated with values

Stream metadata includes runs and num_rle_values counts for decoding.

Tessellation Data (Optional)¶

Pre-tessellated polygons include additional streams for direct GPU rendering:

graph TD
    subgraph "Tessellated Polygon Data"
        TRI["Triangles Stream<br/>(LENGTH/TRIANGLES)"]
        IDX["Index Buffer<br/>(OFFSET/INDEX)"]
        VTX["Vertices<br/>polygon vertices"]
    end

    TRI --> |"how many"| GPU[GPU Rendering]
    IDX --> |"which vertices"| GPU
    VTX --> |"coordinates"| GPU

Example - A square polygon tessellated into 2 triangles:

Vertices: [(0,0), (100,0), (100,100), (0,100)]
Triangles: [2]                    // This polygon has 2 triangles
Index buffer: [0, 1, 2, 0, 2, 3]  // Triangle 1: v0,v1,v2; Triangle 2: v0,v2,v3

Decoding Examples¶

Point¶

Streams:
  META: types = [0]          // Point
  DATA/VERTEX: [200, 400]    // zigzag-encoded deltas

Decode:
  zigzag(200) = 100, zigzag(400) = 200
  Result: Point(100, 200)

LineString¶

Streams:
  META: types = [1]                 // LineString
  LENGTH/PARTS: [3]                 // 3 vertices
  DATA/VERTEX: [0,0, 200,0, 0,200]  // encoded deltas

Decode:
  part_offsets = [0, 3]                   // from lengths
  vertices = [(0,0), (100,0), (100,100)]  // delta-decoded
  Result: LineString with 3 vertices

Polygon with Hole¶

Streams:
  META: types = [2]          // Polygon
  LENGTH/PARTS: [2]          // 2 rings (exterior + 1 hole)
  LENGTH/RINGS: [4, 4]       // 4 vertices each ring
  DATA/VERTEX: [...]         // 8 vertices total

Decode:
  part_offsets = [0, 2]      // 1 polygon with 2 rings
  ring_offsets = [0, 4, 8]   // ring boundaries
  Result: Polygon with exterior ring (4 verts) and hole (4 verts)

MultiPolygon¶

Streams:
  META: types = [5]          // MultiPolygon
  LENGTH/GEOMETRIES: [2]     // 2 polygons
  LENGTH/PARTS: [1, 1]       // 1 ring each
  LENGTH/RINGS: [4, 4]       // 4 vertices each
  DATA/VERTEX: [...]         // 8 vertices total

Decode:
  geometry_offsets = [0, 2]  // spans indices 0-1 in parts
  part_offsets = [0, 1, 2]   // each polygon has 1 ring
  ring_offsets = [0, 4, 8]   // vertex boundaries
  Result: MultiPolygon with 2 simple polygons

Mixed Geometry Columns¶

A single column can contain mixed geometry types. The decoding logic handles this by:

1. Reading geometry types to determine which length streams to expect
2. Iterating through features, applying type-specific offset rules
3. Using implicit length=1 for simple types (Point, LineString, Polygon) and reading explicit lengths for Multi* types

Example: [Point, LineString, Polygon] in one column:

Streams:
  META: types = [0, 1, 2]
  LENGTH/PARTS: [1]          // Polygon: 1 ring
  LENGTH/RINGS: [3, 4]       // LineString: 3 verts, Polygon ring: 4 verts
  DATA/VERTEX: [...]         // 1 + 3 + 4 = 8 vertices

Decode:
  Point: vertices[0]
  LineString: vertices[1..4] // from ring_offsets (Polygon present)
  Polygon: vertices[4..8]    // from ring_offsets

The integer and vertex encodings referenced above are specified in detail in the Encoding Definitions document.

Property Columns¶

Feature properties are divided into feature-scoped and vertex-scoped properties.

• Feature-scoped: One value per feature.
• Vertex-scoped: One value per vertex in the VertexBuffer per feature (modeling M-coordinates from GIS).

Vertex-scoped properties must be grouped together and placed before feature-scoped properties in the FeatureTable. A property's scope is defined in the tileset metadata using the ColumnScope enum.

A property column can use any data type from the type system.

Example Layouts¶

The following examples illustrate the layout of a FeatureTable in storage. The color scheme is:

• Blue boxes: Logical constructs, not persisted. Fields are reconstructed from streams based on TileSet metadata.
• White boxes: Metadata describing data structure (FeatureTable, Stream (SM), Feature (FM) metadata).
• Yellow boxes: Streams containing the actual data.

Place Layer¶

Given a place layer with the following JSON schema structure:

The resulting MLT tile layout for this layer, using a dictionary for the geometry and name columns, might look like this:

LineString Geometry with Flat Properties¶

Encoding of a FeatureTable with an id field, a LineString geometry field, and the flat feature-scoped properties class and subclass:

MultiPolygon with Flat Properties¶

Encoding of a FeatureTable with an id field, a MultiPolygon geometry field, and flat feature-scoped property fields. A VertexOffsets stream is present due to vertex dictionary encoding:

Vertex-Scoped and Feature-Scoped Properties¶

Example layout encoding vertex-scoped and feature-scoped properties. All vertex-scoped properties are grouped together and placed before feature-scoped properties. The id column is not nullable, so its present stream is omitted.

Sorting¶

Choosing the right column to sort features by can significantly reduce the size of the FeatureTable. Sorting is crucial for leveraging the columnar layout fully. Exhaustively testing every possible sorting order for every column in every layer is computationally expensive. See recommended heuristic in the encoding schemes.

Encodings¶

Encoding details are specified in a separate document.

In-Memory Format¶

The record-oriented, array-of-structures in-memory model used by libraries processing Mapbox Vector Tiles incurs considerable overhead. This includes creating many small objects (increasing memory allocation load) and placing additional strain on garbage collectors in browsers.

MLT uses a columnar memory layout (data-oriented design) for its in-memory format to overcome these issues. This approach improves cache utilization for subsequent data access and enables the use of fast SIMD instructions. The MLT in-memory format incorporates ideas from analytical in-memory formats like Apache Arrow, Velox, and the DuckDB execution format, tailored for visualization use cases. It is also designed for future parallel processing on the GPU within compute shaders.

The main design goals for the MLT in-memory format are:

• Define a platform-agnostic representation to avoid expensive materialization costs, especially for strings.
• Maximize CPU throughput by optimizing memory layout for cache locality and SIMD instructions.
• Allow random (preferably constant-time) access to all data for parallel processing on GPUs (compute shaders).
• Provide compressed data structures that can be processed directly without full decoding.
• Provide tile geometries in a representation that can be loaded into GPU buffers with minimal additional processing.

Data is stored in contiguous memory buffers called vectors, accompanied by metadata and an optional null bitmap. The storage format includes a VectorType field in the metadata to instruct the decoder which vector type to use for a specific field. An auxiliary offset buffer enables random access to variable-sized data types like strings or lists.

The MLT in-memory format supports the following vector types:

• Flat Vectors
• Constant Vectors
• Sequence Vectors
• Dictionary Vectors
• FSST Dictionary Vectors
• Shared Dictionary Vectors
• Run-End Encoded (REE) Vectors

Using a compressed vector where possible makes the conversion from storage to in-memory format essentially a zero-copy operation.

Following Apache Arrow's approach and the Intel performance guide, decoders should allocate memory on addresses aligned to a 64-byte multiple (where possible).
